F1 1200 Series | 1%RH Dry Cabinets

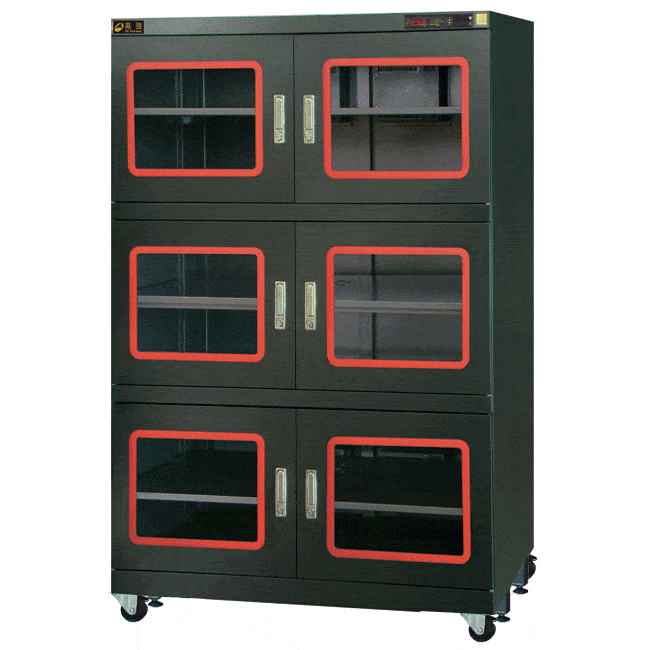

F1 1200 | 1250L Dry CabinetThe Dr.Storage F1 1200 Ultra Low Humidity Dry Cabinet maintains an internal environment of <1%RH. It is specially designed to store and protect moisture sensitive devices (MSD) from humidity related damage and exceeds current the IPC/Jedec J-STD-033 standards. The F1 1200 eliminates the oxidation of stored parts and is particularly useful for storing SMT components, component reels, high tech manufacturing devices, precision metal parts, miniature devices, pharmaceutical substance, biotic specimens, battery, crystal, IC package module, optical lens or scientific instruments. All F1 Dry Cabinets are supplied with Humidity Manager Software so that humidity and temperatures conditions inside the cabinets can be monitored and saved to the software, coloured graphs drawn and the data used for validating processes and showing compliance to standards. Cabinets are supplied with an anti-static package, adjustable shelves, wheels (except the F1-200 bench top), locking doors, storage bins, decimal digital display, countdown calibration reminder, and sensors with 2% accuracy. Upgrade your F1 Series Dry Cabinet with a Dual Sensor Data Logger to record temperature and relative humidity data of the cabinet interior but also the ambient environment.
Cabinet Specs:External Size(in): W47.24 X D26.45 X H71.45 Internal Size(in): W47.16 X D25.27 X H63.97 External Size(mm): W1200 X D672 X H1815 Internal Size(mm): W1198 X D642 X H1625 Shelves: 5 Capacity: 1250L Storage Bin: Red x 6, Gray x 2, Yellow x 2 Power Consumption: Ave. 135W/h, Max. 425W Color: Black
LED Display Control Panel
Simultaneously display temperature & humidity values. RS-232 port for data collection. Display Precision: ±2%RH; ±1℃ (at <10%RH, 25℃) Built-in flash & buzzer alarm.

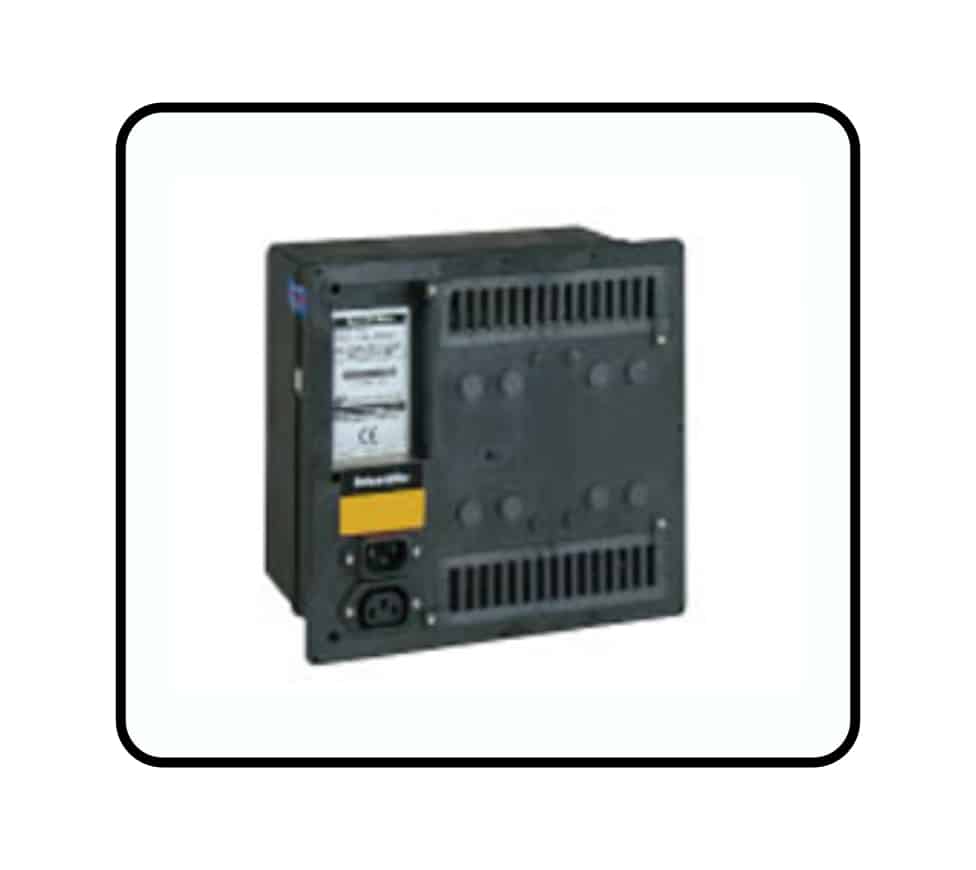

PPS material: 230°C heat tolerance to avoid any deforming or melting of dehumidifiers. Modular design for easy maintenance & painless upgrade. Silent, drip less, frostless operation.

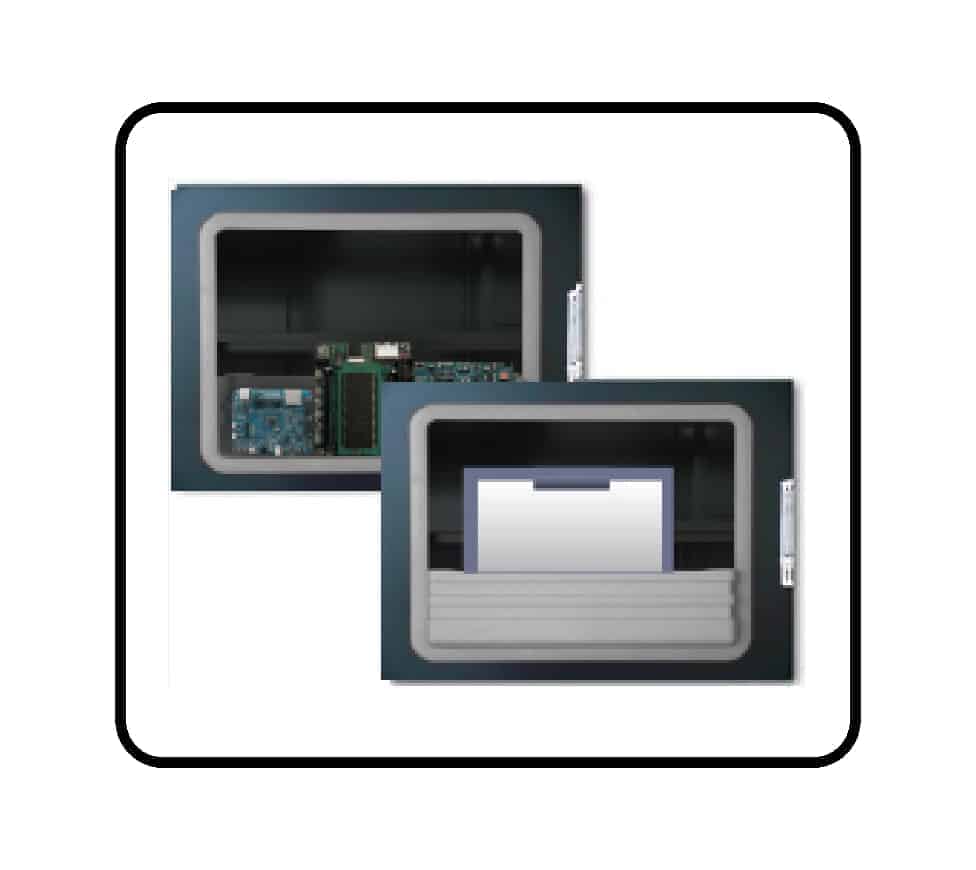

Inside Bin: Store and retrieve important items quickly to shorten the door opening time. Outside Bin: Ideal for work sheet & quality instructions for better QA management. Maximum loading of bin: 5Kgs
Shelves can be flexibly installed in any position. NEW – Sliding Shelf Option Customize or upgrade your Dry Cabinet with our new Sliding Shelf Drawers. Download our brochure: Dry Cabinet Options – Sliding Drawers
