x2b Series | <5%RH Dry Cabinets

X2B 400 | 411L Dry Cabinet

The Dr.Storage X2B 400 Dry Cabinet maintains an internal environment of <5%RH. Designed to store and protect moisture sensitive devices (MSD). The X2B Series eliminates the oxidation of stored parts and is particularly useful for storing SMT components, component reels, surface mount devices (SMD), electronic components, printed circuit boards (PCB), precision metal parts, miniature devices, pharmaceutical substance, biotic specimens, battery, crystal, IC package module, optical lens or scientific instruments.

All X2B Dry Cabinets are built to comply with the IPC/JEDEC J-STD-033 standards. Each model features Humidity Manager Software so that humidity and temperatures conditions inside the cabinets can be monitored and saved. Coloured graphs are drawn and the data can be used for validating processes and to show compliance standards. Cabinets are supplied with an anti-static package, adjustable shelves, wheels (except the X2B-200 bench top), locking doors, storage bins (optional), decimal digital display, countdown calibration reminder and sensors with 2% accuracy.

Upgrade your X2B Series Dry Cabinet with a Dual Sensor Data Logger to record temperature and relative humidity data of the cabinet interior but also the ambient environment.

Cabinet Specs:

External Size(in): W23.62 X D26.45 X H50.19
Internal Size(in): W23.54 X D25.27 X H42.12

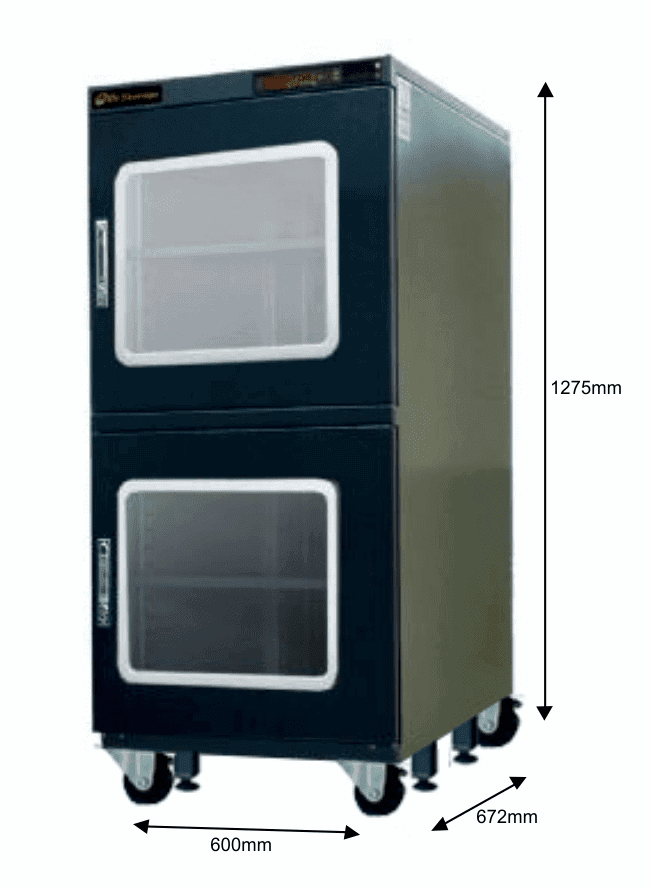

External Size(mm): W600 X D672 X H1275
Internal Size(mm): W598 X D642 X H1070
Capacity: 411L
Shelves: 3
Storage Bins: Optional
Power Consumption: Ave. 55W/h, Max. 155W
Color: Black

Additional Features

LED Display Control Panel

Simultaneously display temperature & humidity values.

RS-232 port for data collection.

Display Precision:
±2%RH; ±1℃ (at <10%RH, 25℃)

Built-in flash & buzzer alarm.

Reliable De-Humidifyer

PPS material: 230°C heat tolerance to avoid any deforming or melting of dehumidifiers.

Modular design for easy maintenance & painless upgrade.

Silent, drip less, frostless operation.

Storage Bins

Inside Bin: Store and retrieve important items quickly to shorten the door opening time. (Optional)

Outside Bin: Ideal for work sheet & quality instructions for better QA management. (Optional)

Maximum loading of bin: 5Kgs

Adjustable Shelves

Shelves can be flexibly installed in any position.

NEW – Sliding Shelf Option
Customize or upgrade your Dry Cabinet with our new Sliding Shelf Drawers. Download our brochure:
Dry Cabinet Options – Sliding Drawers
