T60M 1200 Series | 1%RH – 60℃ baking Cabinets

T60M 1200 | 833L Dry Cabinet

The T60M 1200 Series Baking Cabinet is a dual purpose Dry Cabinet and can be used as a standard Humidity Controlled Storage Cabinet or as a 60°C Baking Cabinet. Built to maintain an internal environment of <1%RH, it can bake moisture sentitive devices (MSD) or components in a 60℃ environment. Baking is used to “reverse the clock” on stored parts and components by removing stored moisture.

Designed to store, protect and renew MSD’s, the T60M 1200 Series eliminates the oxidation of stored parts and removes stored moisture. Particularly useful in high tech manufacturing for storing SMT components, component reels, surface mount devices (SMD), electronic components, printed circuit boards (PCB) or precision metal parts. They can also protect and remove moisture from miniature devices, pharmaceutical substance, biotic specimens, battery, crystal, IC package module, optical lens and scientific instruments.

All T60M 1200 Series Dry Cabinets are built to comply with the IPC/JEDEC J-STD-033 standards. Cabinets are supplied with an anti-static package, wheels, locking doors, decimal digital display, countdown calibration reminder, sensors with 2% accuracy and RS-232 port for data collection. Each model features Humidity Manager Software so that humidity and temperatures conditions inside the cabinets can be monitored and saved to the software. Coloured graphs are drawn and the data can be used for validating processes and to show compliance to standards.

T60W 1200 - 1%RH - 60C Dry Cabinet | Capacity: 833L

Cabinet Specs:

Temp. & Humidity Range: 60℃, <1%RH

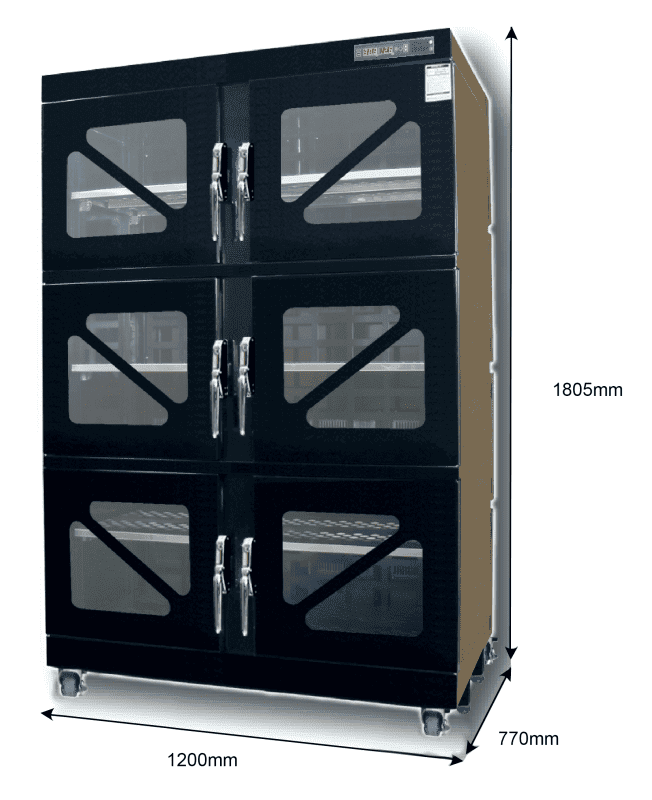

External Dimension (mm): W:1200 | D:770 | H:1805
Internal Dimension (mm): W:1140 | D:490 | H:1450
Shelf Dimensions (mm): W:1080 | D:460 | H:20
External Dimension (inch): W:47.24 | D:30.31 | H:71.06
Internal Dimension (inch): W:44.88| D:19.29 | H:50.08
Shelf Dimensions (inch): W:42.51 | D:18.11 | H:.78
Capacity: 833L
Shelves: 5
Voltage: 110V/230V (select voltage in advance)
Power Consumption: Ave. 165Wh; Max. 355W
Color: Black

T60W Baking Cabinet Performance & Recovery Graph

Additional Features

LED Display Control Panel

Simultaneously display temperature & humidity values. RS-232 port for data collection. Display Precision: ±2%RH; ±1℃ (at <10%RH, 25℃) Built-in flash & buzzer alarm.

Reliable De-Humidifyer

PPS material: 230°C heat tolerance to avoid any deforming or melting of dehumidifiers. Modular design for easy maintenance & painless upgrade. Silent, drip less, frostless operation.
Humidity Manager Software V3 - Tracks Humidity and Temperature of your SMT Dry Cabinet / Desiccant Dry Cabinet | smtdryboxes.com

HUmidity Software

Software works as a Humidity and Temperature tracing function which allows the users to be aware of the storage condition for a period of time. When used with our optional Humidity Manager V3 Software it is easier to calculate the floor life of the MSD.
SMT Dry Boxes - T60W Baking Dry Cabinets - Interior Lighting

Interior Lighting

LED lights installed inside the dry cabinet can be turned on by opening the door or by activating the switch.
