XC 157 Series | 5%RH Dry Cabinets

XC 157 | 164L Dry Cabinet

The Dr.Storage XC 157 Dry Cabinet maintains an internal environment of <5%RH. It is specially designed to store and protect moisture sensitive devices (MSD) from humidity related damage and complies with the IPC/Jedec J-STD-033 standards.

The XC 157 eliminates the oxidation of stored parts and is particularly useful for storing  SMT components, component reels, high tech manufacturing devices, precision metal parts, miniature devices, pharmaceutical substance, biotic specimens, battery, crystal, IC package module, optical lens or scientific instruments.

All XC Series Dry Cabinets are plug and play, feature a rugged air tight design and are available in six different sizes.  Each cabinet come standard with an anti-static package, adjustable shelves, wheels, locking doors, decimal digital display and a countdown calibration reminder.

XC 157 Series - 5%RH Dry Cabinet | 164L | smtdryboxes.com

Cabinet Specs:

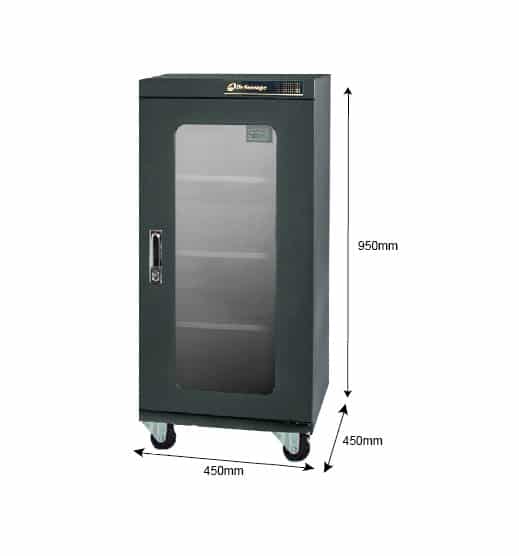

External Size(in): W17.71 X D17.71 X H37.4
Internal Size(in): W17.63 X D16.61 X H34.25
External Size(mm): W450 X D450 X H950
Internal Size(mm): W448 X D422 X H870
Capacity: 164L
Power Consumption: Ave. 55W/h, Max. 150W
Cabinet Color: Black

Additional Features

Precision CP03 Hygrometer

Simultaneously display temperature & humidity values.

Measurement range:
1-99%RH, 0-50℃

Display Precision: ±3%RH, ±1℃

Designed for measuring in low humidity environment.

Top of the line Dehumidifier for the XC Series Dry Cabinet. Dry Cabinet Dehumidifier, Desiccant Dry Cabinet, Dessicant Cabinet, Nitrogen Dry Cabinets and Accessories

Reliable De-Humidifyer

PPS material: 230°C heat tolerance to avoid any deforming or melting of dehumidifiers.

Modular design for easy maintenance & painless upgrade.

Silent, drip less, frostless operation.

Storage Bins

Inside Bin: Store and retrieve important items quickly to shorten the door opening time. (*Optional)

Outside Bin: Ideal for work sheet & quality instructions for better QA management. (*Optional)

Maximum loading of bin: 5Kgs

Adjustable Shelves

Shelves can be flexibly installed in any position.

Contact Us For Pricing or More Information
