t40W 240 Series | 5%RH – 40℃ Baking Cabinets

T40W 240 | 126L Dry Cabinet

The T40W 240 Baking Cabinet is a dual purpose Dry Cabinet and can be used as a standard Humidity Controlled Storage Cabinet or as a 40°C Baking Cabinet. Built to maintain an internal environment of <5%RH, it can bake moisture sentitive devices (MSD) or components in a 40℃ environment. Baking is used to “reverse the clock” on stored parts and components by removing stored moisture.

Designed to store, protect and renew MSD’s, the T40W Series eliminates the oxidation of stored parts and removes stored moisture. Particularly useful in high tech manufacturing for storing SMT components, component reels, surface mount devices (SMD), electronic components, printed circuit boards (PCB) or precision metal parts. They can also protect and remove moisture from miniature devices, pharmaceutical substance, biotic specimens, battery, crystal, IC package module, optical lens and scientific instruments.

All T40W Dry Cabinets are built to comply with the IPC/JEDEC J-STD-033 standards. Each model features Humidity Manager Software so that humidity and temperatures conditions inside the cabinets can be monitored and saved to the software, coloured graphs are drawn and the data can be used for validating processes and to show compliance to standards. Cabinets are supplied with an anti-static package, adjustable shelves, wheels (except the T40W-200 bench top), locking doors, decimal digital display, countdown calibration reminder, sensors with 2% accuracy.

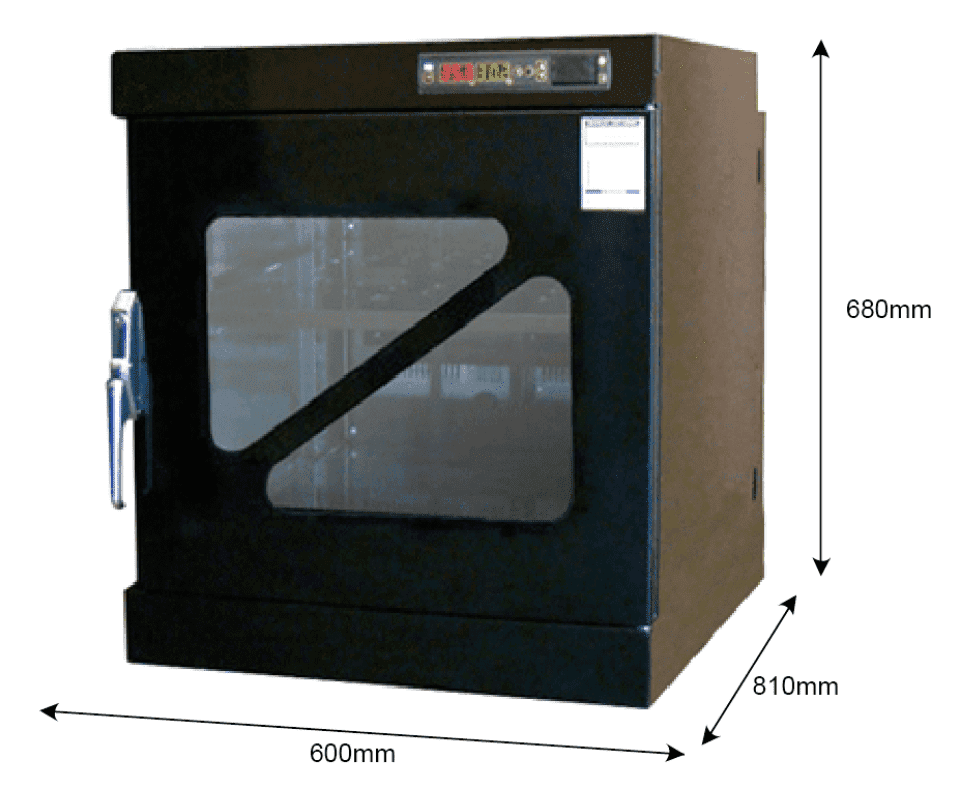

T40W 240 - 5%RH - 40C Dry Cabinet | Capacity: 126L

Cabinet Specs:

Temp. & Humidity Range: 40℃, <5%RH
External Dimension (mm): W:600 | D:810 | H:680
Internal Dimension (mm): W:510 | D:530 | H:420
External Dimension (inch): W:23.62 | D:31.88 | H:26.77
Internal Dimension (inch): W:20.07 | D:20.86 | H:16.53
Shelf Dimensions (mm): W:480 | D:510 | H:20
Capacity: 126L
Shelves: 2
Voltage: 110V/230V (select voltage in advance)
Power Consumption: Ave. 165Wh; Max. 355W
Color: Black

Additional Features

LED Display Control Panel

Simultaneously display temperature & humidity values.

RS-232 port for data collection.

Display Precision:
±2%RH; ±1℃ (at <10%RH, 25℃)

Built-in flash & buzzer alarm.

Top of the line Dehumidifier for the XC Series Dry Cabinet. Dry Cabinet Dehumidifier, Desiccant Dry Cabinet, Dessicant Cabinet, Nitrogen Dry Cabinets and Accessories

Reliable De-Humidifyer

PPS material: 230°C heat tolerance to avoid any deforming or melting of dehumidifiers.

Modular design for easy maintenance & painless upgrade.

Silent, drip less, frostless operation.

Humidity Manager Software V3 - Tracks Humidity and Temperature of your SMT Dry Cabinet / Desiccant Dry Cabinet | smtdryboxes.com

HUmidity Software

Software works as a Humidity and Temperature tracing function which allows the users to be aware of the storage condition for a period of time. When used with our optional Humidity Manager V3 Software it is easier to calculate the floor life of the MSD.
SMT Dry Boxes - IPC - JEDEC Standard - Reset Floor Life - Baking Dry Cabinets

Reset Floor Life

The combination of controlled ultra low drying and baking removes moisture from stored components and moisture sensitive devices. This can reset the floor life of stored materials, saving costs and preventing damages.

Contact Us For Pricing or More Information
