QDB 200 Series | Nitrogen Dry Cabinets

QDB 200 Benchtop | 202L Smart Nitrogen Dry Cabinet

The Dr. Storage QDB 200 Series of Smart Nitrogen Dry Cabinets are designed to control the filling of user supplied dry air into the cabinet, so the desired relative humidity in the cabinet can be reached. The QDB Smart Nitrogen Cabinet is adjustable from 1%~50%RH. The dry air can be nitrogen, CO2 or inert gas. Nitrogen Gas is the most classic and common choice of dry air. The use of Nitrogen as a dry air protects components or samples sensitive to the level of ambient oxygen in the atmosphere and subsequent oxidization. This is the ideal cabinet when that is of a concern. Due to the nature of Nitrogen as a dry air, the QDB Smart Nitrogen Dry Cabinets have a faster recovery rate than a desiccant dry cabinet.

All QDB Dry Boxes come complete with a QDN filling module, digital display, RS-232 port, humidity manager software, antistatic package, locking doors, adjustable shelves, alarm, conductive wheels (except for the QDB-200), calibration reminder, and are black in color. This cabinet provides optimal protection for (but is not limited to) electronic components such as IC’s and PCBs . QDB Smart Nitrogen Cabinets are also available in Stainless steel (QDB-600 & QDB-1200) upon special request and is the ideal design of cabinet for storing semi-conductors.



QDB 200 Series - 1%RH Nitrogen Dry Cabinet | 202L | smtdryboxes.com

Cabinet Specs:

External Size(in): W23.62 X D26.45 X H24.88
Internal Size(in): W23.54 X D25.27 X H20.66
External Size(mm): W600 X D672 X H632
Internal Size(mm): W598 X D642 X H525
Capacity: 202L
Shelves: 2
Storage Bins: Optional
Power Consumption: Ave. 20W/h, Max. 50W
Color: Black

Additional Features

LED Control Panel for Dry Cabinet, Desiccant Dry Cabinet, Dessicant Cabinet, Nitrogen Dry Cabinets and Dry Cabinet Accessories

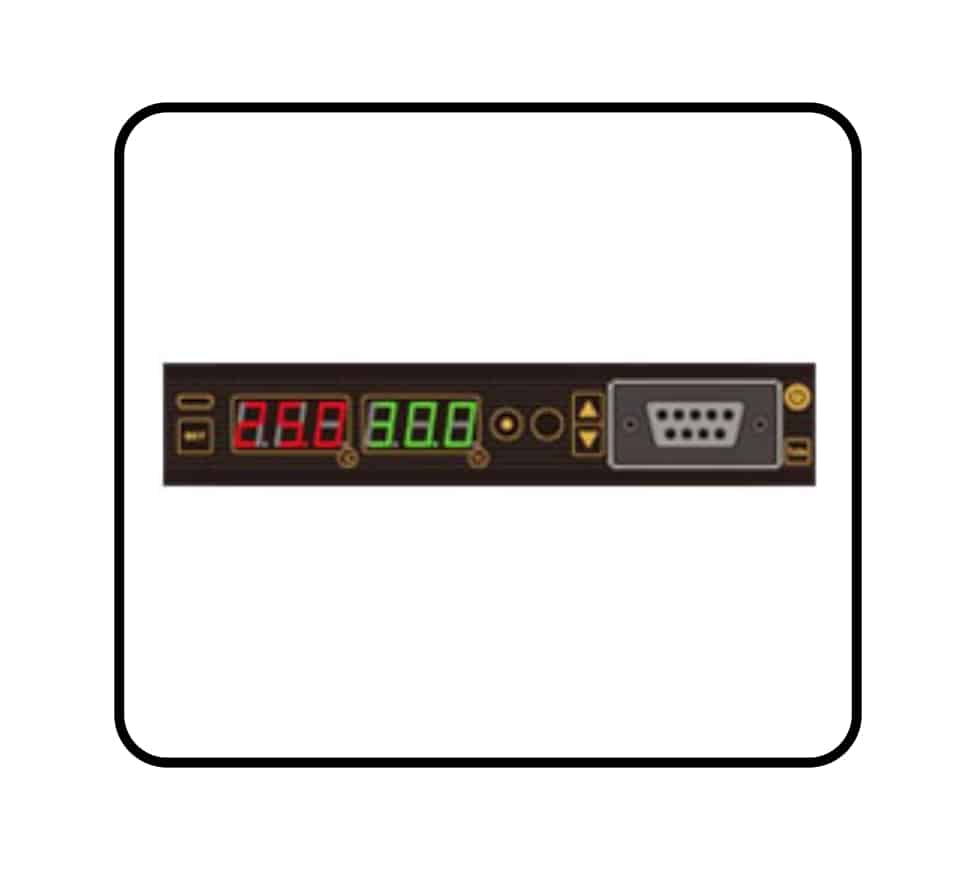

LED Display Control Panel

Simultaneously display temperature & humidity values.

RS-232 port for data collection.

Display Precision:
±2%RH; ±1℃ (at <10%RH, 25℃)

Built-in flash & buzzer alarm.

Reliable Dry Cabinet Dehumidifier, Desiccant Dry Cabinet, Dessicant Cabinet, Nitrogen Dry Cabinets and Dry Cabinet Accessories

Reliable De-Humidifyer

PPS material: 230°C heat tolerance to avoid any deforming or melting of dehumidifiers.

Modular design for easy maintenance & painless upgrade.

Silent, drip less, frostless operation.

Colourfull Dry Cabinet Storage Bins, Desiccant Dry Cabinet, Dessicant Cabinet, Nitrogen Dry Cabinets and Accessories

Storage Bins

Inside Bin: Store and retrieve important items quickly to shorten the door opening time. (Optional)

Outside Bin: Ideal for work sheet & quality instructions for better QA management. (Optional)

Maximum loading of bin: 5Kgs

Dry Cabinet Adjustable Shelves, Desiccant Dry Cabinet, Dessicant Cabinet, Nitrogen Dry Cabinets and Accessories

Adjustable Shelves

Shelves can be flexibly installed in any position.

NEW – Sliding Shelf Option
Customize or upgrade your Dry Cabinet with our new Sliding Shelf Drawers. Download our brochure:
Dry Cabinet Options – Sliding Drawers

Contact Us For Pricing or More Information
